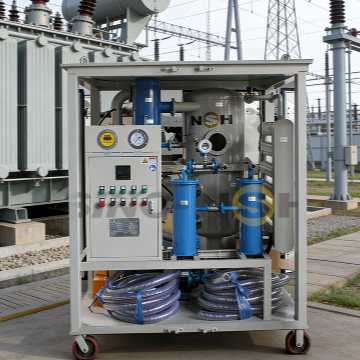

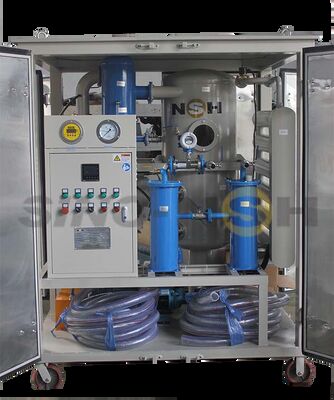

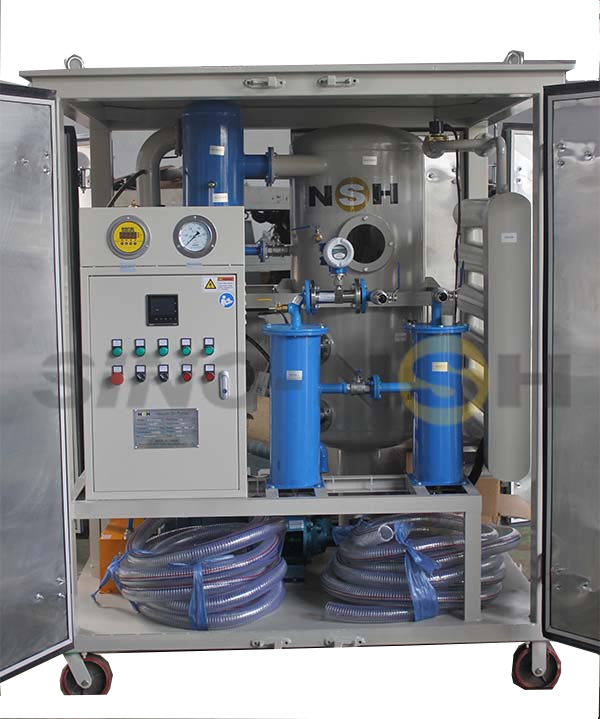

6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	Sino-NSH
Certificación:	CE, ISO, CCC, SGS, CNAS, CQC
Número de modelo:	VFD

Cantidad de orden mínima:	1 juego
Precio:	USD 5000-20000 dollar
Detalles de empaquetado:	Casas de madera resistentes, adecuadas para el transporte marítimo de mercancías a larga distancia y
Tiempo de entrega:	15-25 días laborables para el OEM
Condiciones de pago:	LC, T/T, Western Union, MoneyGram
Capacidad de la fuente:	50 conjuntos por mes

Mejor precio Contactar ahora

Potencia(w):	103 KILOVATIOS	Peso:	900 kg
Servicio postventa proporcionado::	Ingenieros disponibles para dar servicio a maquinaria en el extranjero.	Voltaje:	380v/50hz o según la opción del usuario
Garantía:	12 meses	color:	Azul, Gris, Verde o Personalizable
Temperatura de trabajo:	-10 ~ 80 °C	Material:	Acero
Método de calentamiento:	Eléctrico	Condición:	Nuevo
Dimensión (largo* ancho* alto):	190014001800	Flujo (L/H):	6000
Presión de trabajo:	≤ 0.3MPA	Función:	Esta unidad puede mejorar las propiedades de los aceites aislantes en transformadores de energía elé
Materia prima:	Acero carbono	Tipo:	Filtración del aceite del transformador
Capacidad:	6000 L./H	Nombre:	Máquina de la deshidratación del aceite de la máquina del purificador de aceite del transformador de
Destacar:	Purificador de aceite de transformador de 6000 L/H, equipo de purificación de aceite de aislamiento

Product Overview

Sino-NSH 6000 liters/ hour Double-Stage Transformer Oil Purification Machine is a highly efficient and reliable oil cleaning equipment, specifically designed to meet the stringent requirements of transformer oil purification. This advanced machine is equipped with a robust steel cover, ensuring durability and safety during operation.

Application

Sino-NSH-VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.

Processed Oil Specification:

Water Content:≤5ppm

Gas Content:≤0.1%

Filtration Fineness:≤5(or 1-5 as needed)

Operating conditions

The installation shall be designed to operate satisfactory at ambient temperatures ranging from -20 deg.C to 55 deg. C
Working PrincipleThe insulating oil is conveyed into the plant by means of pressure difference. Oil will firstly flow through a coarse filter, which can filter out large particles and mechanical impurities from insulating oil.
Oil is heated uniformly by electric heater with less specific heat transfer of1.7w/cm², thus the deterioration of the oil caused by overheating is avoided during this process.
The special vacuum tank create a large oil surface and a resulting thin film,where the oil flows track and static water evaporation area were expanded to the largest extent, so that the effect of dehydration and degassing is maximized effectively.The particular double-stage vacuum pump system and pressure-boost technical make vacuum degree in vacuum tank higher than that in common oil purifier plant. Specially-designed oil level controller in the vacuum tank assures a continuous oil flow-through in the plant, thus resulting in an optimized dehydration and degassing of the oil.
After degassing and dehydration under vacuum, the oil is conveyed by through the fine filter and out of the plant.



Item
Unit
VFD-30
VFD-50
VFD-100
VFD-150
VFD-200
VFD-300

Capacity
liters/hour
1800
3000
6000
9000
12000
18000

Heating Power
kW
24
30
60
90
120
150

Total Power
kW
29
36
69
100
132
170

Inlet Diameter
mm
25
32
40
40
50
65

Outlet Diameter
mm
25
32
40
40
50
65

Size-Length
mm
1350
1500
1900
2200
2400
2900

Size-Width
mm
1100
1200
1400
1500
1600
1800

Size-Height
mm
1700
1750
1800
1850
1900
2000

Weight
kg
600
800
1150
1500
1700
2400

Function or Construction1.Dehydration (Degas) System
2.Filtering System(particulate matter removal)
3.Oil heating System
4.Electrical Apparatus controlling System
5.Oil-level Controlling System
6.High quality components
The main component parts of NSH products such as vacuum pump,oil pump and electric apparatus are from high quality suppliers. It ensures NSH products high quality and reliability.
Emai: sinonsh30@sino-purification.com
Whatsapp:+86 15823027156

etiqueta:

6000 liters/ hour Double-Stage Transformer Oil Purification Machine Oil cleaning equipment with steel cover

Product Overview

Application

Processed Oil Specification:

Working Principle

Function or Construction

máquina del filtro de aceite del vacío,

equipo purificador de aceite,

sistemas de la purificación de aceite

Máquina automática de filtro de aceite al vacío

Máquina eléctrica de alto voltaje de la filtración del aceite del transformador horizontal en la línea trabajo

Las etapas dobles limpian la máquina 600L/H del purificador con la aspiradora de aceite del transformador

Fosfato resistente al fuego Ester Vacuum Oil Purifier Dehydration 3000L/H

Item	Unit	VFD-30	VFD-50	VFD-100	VFD-150	VFD-200	VFD-300
Capacity	liters/hour	1800	3000	6000	9000	12000	18000
Heating Power	kW	24	30	60	90	120	150
Total Power	kW	29	36	69	100	132	170
Inlet Diameter	mm	25	32	40	40	50	65
Outlet Diameter	mm	25	32	40	40	50	65
Size-Length	mm	1350	1500	1900	2200	2400	2900
Size-Width	mm	1100	1200	1400	1500	1600	1800
Size-Height	mm	1700	1750	1800	1850	1900	2000
Weight	kg	600	800	1150	1500	1700	2400
